  5. NJT8318UFMRA

NJT8318UFMRA

Block Upconverter by Nisshinbo Micro Devices
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Nisshinbo Micro Devices.

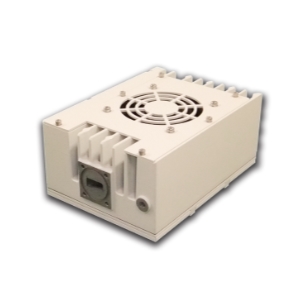

NJT8318UFMRA Image

The NJT8318UFMRA from Nisshinbo Micro Devices is a Block Upconverter with Gain 59 to 65 dB(Linear Gain), Impedance 75 Ohms, Input Frequency 950 MHz to 1.7 GHz, Input Power -5 to 5 dBm, LO Frequency 12.80 GHz. Tags: Waveguide. More details for NJT8318UFMRA can be seen below.

Product Specifications

Product Details

  • Part Number
    NJT8318UFMRA
  • Manufacturer
    Nisshinbo Micro Devices
  • Description
    Universal/Standard Ku-Band 8W Block Upconverter from 13.75 to 14.5 GHz

General Parameters

  • Connector
    F Type, F Type - Female
  • Dimension
    180 x 130 x 80 mm(L x W x H)
  • Gain
    59 to 65 dB(Linear Gain)
  • Gain Control
    No
  • Impedance
    75 Ohms
  • Input Frequency
    950 MHz to 1.7 GHz
  • Input Frequency Band
    L Band
  • Input Power
    -5 to 5 dBm
  • Interface
    RS-232C
  • LO Frequency
    12.80 GHz
  • Noise Figure
    20 dB
  • Operating Temperature
    -40 to 75 Degree C
  • Output Frequency
    13.75 to 14.5 GHz
  • Output Frequency Band
    Ku Band
  • Output Power
    39 dBm(p1)
  • P1 dB
    39 dBm
  • Package Type
    Waveguide
  • Phase Noise
    -100 to -60 dBc/Hz
  • Redundancy
    No
  • Spurious
    -50 dBc
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-75
  • Weight
    2.4 Kg
  • Note
    Power Consumption : 65 to 90 W
