ATOM 80W Ku-Band, GaN Block Upconverter

SKU: ATOMBKUG080

Block Upconverter by Norsat
31 more products
Download Datasheet Request Information

Note : Your request will be directed to Norsat.

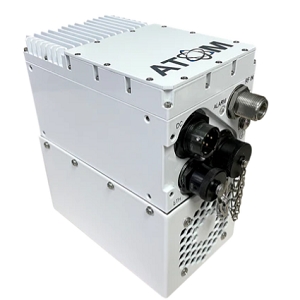

ATOMBKUG080 Image

The ATOMBKUG080 from Norsat is a Block Upconverter with DC Voltage 18 to 56 V, Gain 60 to 70 dB(Linear Gain), Gain Flatness ±1.5 to 6 dB, Impedance 50 Ohms, Input Frequency 950 MHz to 1.45 GHz, 950 MHz to 1.7 GHz. Tags: Module with Connectors. More details for ATOMBKUG080 can be seen below.

Product Specifications

Product Details

  • Part Number
    ATOMBKUG080
  • Manufacturer
    Norsat
  • Description
    ATOM 80W Ku-Band, GaN Block Upconverter

General Parameters

  • Connector
    N Type
  • DC Voltage
    18 to 56 V
  • Dimension
    6.59 x 3.74 x 6.51 Inches
  • Gain
    60 to 70 dB(Linear Gain)
  • Gain Control
    Yes
  • Gain Flatness
    ±1.5 to 6 dB
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 1.45 GHz, 950 MHz to 1.7 GHz
  • Input Frequency Band
    L Band
  • Interface
    RS-485 & RS-232 Ethernet
  • LO Frequency
    13.05 GHz, 12.80 GHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    14 to 14.5 GHz, 13.75 to 14.5 GHz
  • Output Frequency Band
    Ku Band
  • Output Power
    49 dBm(Psat)
  • Package Type
    Module with Connectors
  • Phase Noise
    -103 to -73 dBc/Hz
  • Redundancy
    No
  • Spurious
    -60 dBc
  • Storage Temperature
    -40 to 71 Degree C
  • VSWR
    2.00:1, 2.60:1
  • Waveguide
    WR-75G
  • Weight
    2.3 Kg
  • Note
    Power Consumption : 370 W
