  5. ELMTBC030

Element 30W C-Band, Block Upconverter

SKU: ELMTBC030

Block Upconverter by Norsat
31 more products
Download Datasheet Request Information

Note : Your request will be directed to Norsat.

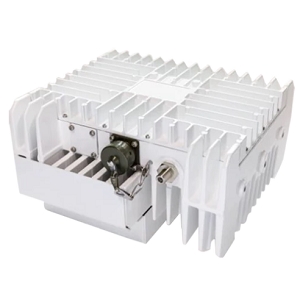

ELMTBC030 Image

The ELMTBC030 from Norsat is a Block Upconverter with AC Voltage 85 to 265 VAC, DC Voltage 36 to 60 V, Gain 71 to 76 dB(Linear Gain), Gain Flatness ±1.5 to 4 dB, Impedance 50 Ohms, 75 Ohms. Tags: Module with Connectors. More details for ELMTBC030 can be seen below.

Product Specifications

Product Details

  • Part Number
    ELMTBC030
  • Manufacturer
    Norsat
  • Description
    Element 30W C-Band, Block Upconverter

General Parameters

  • AC Voltage
    85 to 265 VAC
  • Connector
    N Type, F Type
  • DC Voltage
    36 to 60 V
  • Dimension
    8.66 x 7.72 x 5.43 Inches
  • Gain
    71 to 76 dB(Linear Gain)
  • Gain Control
    No
  • Gain Flatness
    ±1.5 to 4 dB
  • Impedance
    50 Ohms, 75 Ohms
  • Input Frequency
    950 MHz to 1.525 GHz, 1.15 to 1.45 GHz, 975 MHz to 1.275 GHz, 950 MHz to 1.825 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    4.90 GHz, 5.275 GHz, 5.75 GHz, 4.90 GHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    5.850 to 6.425 GHz, 6.425 to 6.725 GHz, 6.725 to 7.025 GHz, 5.850 to 6.725 GHz
  • Output Frequency Band
    C Band
  • Output Power
    44.8 dBm(P1)
  • P1 dB
    44.8 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -95 to -65 dBc/Hz
  • Redundancy
    No
  • Spurious
    -60 to -50 dBc
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-137
  • Weight
    DC: 5 Kg, AC: 6 Kg
  • Note
    Power Consumption : 220 to 240 W
