Element 7W Ka-Band, Block Upconverter from 29.50 to 30 GHz

SKU: ELMTBKA007

Block Upconverter by Norsat
31 more products
Download Datasheet Request Information

Note : Your request will be directed to Norsat.

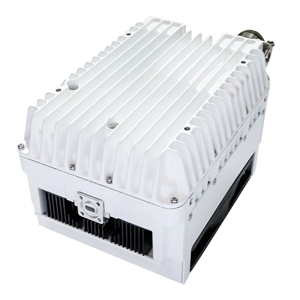

ELMTBKA007 Image

The ELMTBKA007 from Norsat is a Block Upconverter with DC Voltage 36 to 60 V, Gain 65 to 70 dB(Linear Gain), Gain Flatness ±3 to 4 dB, Impedance 50 Ohms, 75 Ohms, Input Frequency 950 MHz to 1.45 GHz. Tags: Module with Connectors. More details for ELMTBKA007 can be seen below.

Product Specifications

Product Details

  • Part Number
    ELMTBKA007
  • Manufacturer
    Norsat
  • Description
    Element 7W Ka-Band, Block Upconverter from 29.50 to 30 GHz

General Parameters

  • Connector
    F Type, N Type
  • DC Voltage
    36 to 60 V
  • Dimension
    6.69 x 4.72 x 4.33 Inches
  • Gain
    65 to 70 dB(Linear Gain)
  • Gain Control
    No
  • Gain Flatness
    ±3 to 4 dB
  • Impedance
    50 Ohms, 75 Ohms
  • Input Frequency
    950 MHz to 1.45 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    28.55 GHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    29.50 to 30 GHz
  • Output Frequency Band
    Ka Band
  • Output Power
    38.5 dBm(P1)
  • P1 dB
    38.5 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -95 to -65 dBc/Hz
  • Redundancy
    No
  • Spurious
    -60 dBc
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-28
  • Weight
    2.37 Kg
  • Note
    Power Consumption : 130 W
