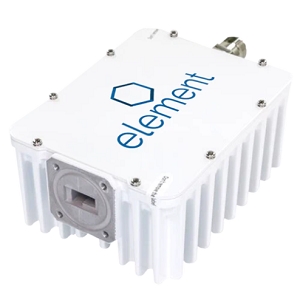

The ELMTBKU002 from Norsat is a Block Upconverter with a transmit frequency range of 14–14.5 GHz (Standard) and 13.75–14.5 GHz (Extended). It has an IF frequency range of 950–1450 MHz (Standard) and 950–1700 MHz (Extended). This BUC features an LO frequency of 13.05 GHz (Standard) with 12.08 GHz (Extended) and has a maximum linear gain of 60 dB. It has a gain flatness of less than 4.0 dB p-p (full band) and a saturated output power of 33.5 dBm. The BUC delivers a minimum output power P1dB of 33 dBm and a maximum phase noise of up to -90 dBc/Hz at 100 kHz. It has an output spurious of less than -60 dBc and an input/output VSWR of 2.0:1. The unit requires an input voltage of 15–24 V DC and has a power consumption of 18 W. It weighs 700 g and measures 128.4 x 95.1 x 58.3 mm.
