Element 6W Ku-Band, Mini Block Upconverter

SKU: ELMTBKU006

Block Upconverter by Norsat (32 more products)

Note : Your request will be directed to Norsat.

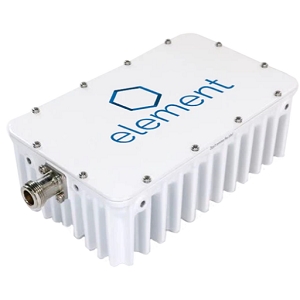

ELMTBKU006 Image

The ELMTBKU006 from Norsat is a Block Upconverter with DC Voltage 15 to 30 V, Gain 55 to 65 dB(Linear Gain), Gain Flatness ±1.5 to 4 dB, Impedance 50 Ohms, 75 Ohms, Input Frequency 950 MHz to 1.45 GHz, 950 MHz to 1.7 GHz. Tags: Modules With Connector. More details for ELMTBKU006 can be seen below.

Product Specifications

Product Details

  • Part Number
    ELMTBKU006
  • Manufacturer
    Norsat
  • Description
    Element 6W Ku-Band, Mini Block Upconverter

General Parameters

  • Connector
    N Type, F Type
  • DC Voltage
    15 to 30 V
  • Dimension
    6.25 x 3.83 x 2.17 Inches
  • Gain
    55 to 65 dB(Linear Gain)
  • Gain Control
    No
  • Gain Flatness
    ±1.5 to 4 dB
  • Impedance
    50 Ohms, 75 Ohms
  • Input Frequency
    950 MHz to 1.45 GHz, 950 MHz to 1.7 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    13.05 GHz, 12.80 GHz, 13.55 GHz
  • Operating Temperature
    -40 to 55 Degree C
  • Output Frequency
    14 to 14.5 GHz, 13.75 to 14.5 GHz, 13.75 to 14.25 GHz, 14.5 to 14.8 GHz
  • Output Frequency Band
    Ku Band
  • Output Power
    37.8 dBm(P1)
  • P1 dB
    37.8 dBm
  • Package Type
    Modules With Connector
  • Phase Noise
    -90 to -60 dBc/Hz
  • Redundancy
    No
  • Storage Temperature
    -40 to 60 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-75G
  • Weight
    0.98 kg
  • Note
    Power Consumption : 48 W
