RFBUC2G3GA

Block Upconverter by RF-Lambda
9 more products
Download Datasheet Request Information

Note : Your request will be directed to RF-Lambda.

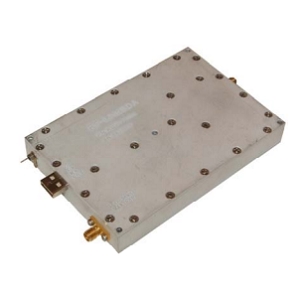

RFBUC2G3GA Image

The RFBUC2G3GA from RF-Lambda is a Block Upconverter with AC Voltage 110 to 220 VAC, DC Voltage 12 V, Gain 50 dB(Conversion Gain), Gain Flatness ±0.5 to 1 dB, Input Frequency 25 to 200 MHz. Tags: Module with Connectors. More details for RFBUC2G3GA can be seen below.

Product Specifications

Product Details

  • Part Number
    RFBUC2G3GA
  • Manufacturer
    RF-Lambda
  • Description
    High Peak to Average Ratio of DM Block Upconverter from 2.3 to 2.50 GHz

General Parameters

  • AC Voltage
    110 to 220 VAC
  • Connector
    N Type, N Type - Female, SMA, SMA - Female
  • DC Voltage
    12 V
  • Dimension
    4.92 x 3.35 x 0.63 Inches(DC model), 7.87 X 4.72 X 1 Inches(AC model)
  • Gain
    50 dB(Conversion Gain)
  • Gain Control
    No
  • Gain Flatness
    ±0.5 to 1 dB
  • Input Frequency
    25 to 200 MHz
  • Input Frequency Band
    VHF Band
  • Input Power
    -10 dBm
  • Interface
    USB USART (TTL control)
  • OIP3
    43 dBm
  • Operating Temperature
    -40 to 85 Degree C
  • Output Frequency
    2.3 to 2.5 GHz
  • Output Frequency Band
    S Band
  • Output Power
    33 dBm(p1)
  • P1 dB
    33 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -110 dBc/Hz
  • Redundancy
    No
  • Spurious
    30 to 60 dBc
  • VSWR
    1.50:1
