Super Compact 80W C-Band, Block Upconverter from 5.850 to 6.425 GHz

SKU: STS100C2 80W

Block Upconverter by Spacepath Communications (3 more products)

Note : Your request will be directed to Spacepath Communications.

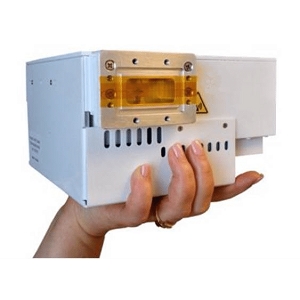

STS100C2 80W Image

The STS100C2 80W from Spacepath Communications is a Block Upconverter with AC Voltage 90 to 265 VAC, DC Voltage 36 to 72 V, Gain 72 to 75 dB(Conversion Gain), Gain Flatness ±0.5 to 1.5 dB, Input Frequency 950 MHz to 1.525 GHz. Tags: Module with Connectors. More details for STS100C2 80W can be seen below.

Product Specifications

Product Details

  • Part Number
    STS100C2 80W
  • Manufacturer
    Spacepath Communications
  • Description
    Super Compact 80W C-Band, Block Upconverter from 5.850 to 6.425 GHz

General Parameters

  • AC Voltage
    90 to 265 VAC
  • Connector
    N Type, N Type - Female
  • DC Voltage
    36 to 72 V
  • Dimension
    16.5 x 18.5 x 10.5 cm
  • Gain
    72 to 75 dB(Conversion Gain)
  • Gain Control
    Yes
  • Gain Flatness
    ±0.5 to 1.5 dB
  • Input Frequency
    950 MHz to 1.525 GHz
  • Input Frequency Band
    L Band
  • Interface
    RS-485, RS-235, Ethernet
  • LO Frequency
    4.90 GHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    5.850 to 6.425 GHz
  • Output Frequency Band
    C Band
  • Output Power
    49 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -115 to -70 dBc/Hz
  • Redundancy
    Yes
  • Spurious
    -60 to -55 dBc
  • Waveguide
    CPR 137-G
  • Weight
    3 kg
