The Intelligent Block Upconverter from 5.85 to 6.725 GHz

SKU: C-Band IBUC 2

Block Upconverter by Terrasat Communications
8 more products
Download Datasheet Request Information

Note : Your request will be directed to Terrasat Communications.

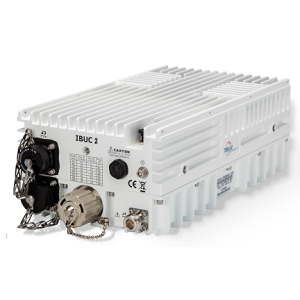

C-Band IBUC 2 Image

The C-Band IBUC 2 from Terrasat Communications is a Block Upconverter with AC Voltage 100 to 240 VAC, DC Voltage 48 V, Gain 57 to 80 dB(Small Signal Gain), Gain Flatness ±0.25 to 4 dB, Harmonics -50 dBc. Tags: Module with Connectors. More details for C-Band IBUC 2 can be seen below.

Product Specifications

Product Details

  • Part Number
    C-Band IBUC 2
  • Manufacturer
    Terrasat Communications
  • Description
    The Intelligent Block Upconverter from 5.85 to 6.725 GHz

General Parameters

  • AC Voltage
    100 to 240 VAC
  • Connector
    TNC, N Type, N Type - Female, F Type
  • DC Voltage
    48 V
  • Dimension
    267 x 152 x 97 mm(5 to 10 W(DC)), 267 x 152 x 107 mm(5 to 10 W(AC)), 267 x 152 x 132 mm(15 to 30 W(DC)), 267 x 152 x 142 mm(15 to 30 W(AC)), 267 x 152 x 132 mm(40 to 80 W(DC)), 267 x 152 x 142 mm(40 to 80 W(AC))
  • Gain
    57 to 80 dB(Small Signal Gain)
  • Gain Control
    Yes
  • Gain Flatness
    ±0.25 to 4 dB
  • Harmonics
    -50 dBc
  • Impedance
    50 Ohms
  • Input Frequency
    950 to 1525 MHz, 975 to 1275 MHz, 1150 to 1450 MHz, 950 to 1750 MHz, 975 to 1850 MHz, 950 to 1525 MHz, 1125 to 1425 MHz, 965 to 1265 MHz, 950 to 1750 MHz, 950 to 1825 MHz
  • Input Frequency Band
    L Band
  • Input Power
    -55 to -20 dBm
  • Interface
    Ethernet (HTTPS, SSHv2, SNMPv3 with USM and VACM) via RJ45 Connector RS-232
  • LO Frequency
    7375 MHz, 4900 MHz, 7700 MHz, 5300 MHz, 8175 MHz, 5760 MHz, 7600 MHz, 4900 MHz, 7700 MHz, 4900 MHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    5.85 to 6.425 GHz, 6.425 to 6.725 GHz, 6.725 to 7.025 GHz, 5.85 to 6.65 GHz, 5.85 to 6.725 GHz
  • Output Frequency Band
    C Band
  • Output Power
    37 to 49 dBm(p1)
  • P1 dB
    37 to 49 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -155 to -54 dBc/Hz
  • Redundancy
    No
  • Spurious
    -65 dBc
  • VSWR
    1.50:1
  • Waveguide
    CPR-137G
  • Weight
    4.2 Kg, 4.8 Kg, 4.9 Kg, 5.3 Kg, 5.2 Kg, 5.6 Kg
