Space Qualified MIS Capacitors

SKU: 8000 Series

Space Qualified Capacitor by Equipements Scientifiques
1 more product
Download Datasheet Request Information

Note : Your request will be directed to Equipements Scientifiques.

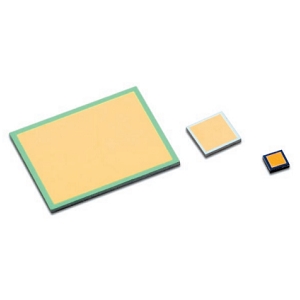

8000 Series Image

The 8000 Series from Equipements Scientifiques is a Space Qualified Capacitor with Capacitance 2 to 600 pF, Voltage 50 V. Tags: Surface Mount. More details for 8000 Series can be seen below.

Product Specifications

Product Details

  • Part Number
    8000 Series
  • Manufacturer
    Equipements Scientifiques
  • Description
    Space Qualified MIS Capacitors

General Parameters

  • Capacitance
    2 to 600 pF
  • Voltage
    50 V
  • Tolerance
    5%, 10%
  • Dielectric Material
    Oxide/Nitride
  • Package Type
    Surface Mount
  • Dimension
    0.01 x 0.01 x 0.005 Inches, 0.015 x 0.015 x 0.005 Inches, 0.02 x 0.02 x 0.006 Inches, 0.03 x 0.03 x 0.006 Inches, 0.04 x 0.04 x 0.008 Inches, 0.05 x 0.05 x 0.008 Inches, 0.07 x 0.07 x 0.008 Inches
  • Application
    For use in applications that require DC protection, RF bypassing or fixed tuning of amplifiers, oscillators, switches, filters and multipliers
