3300 pF Space Grade Ceramic Capacitors

SKU: 05HS21N332KCF

Space Qualified Capacitor by KEMET (89 more products)

Note : Your request will be directed to KEMET.

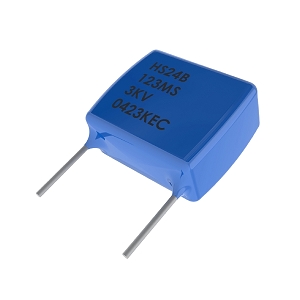

05HS21N332KCF Image

The 05HS21N332KCF from KEMET is a Space Qualified Capacitor with a capacitance value of 3300 pF and a capacitance tolerance of 5 %. This capacitor has a surge current of 30 mA and requires a DC supply voltage of 500 V. It has a dielectric withstanding voltage of 750 V and an insulation resistance of 100 GOhms. The capacitor is designed with C0G dielectric and features a Lead (SnPb) termination. It is screened to MIL-PRF-49467 and is ideal for applications such as aerospace engine compartments, switch mode power supplies, DC/DC converters, measuring equipment, inverters, and high-voltage coupling.

Product Specifications

Product Details

  • Part Number
    05HS21N332KCF
  • Manufacturer
    KEMET
  • Description
    3300 pF Space Grade Ceramic Capacitors

General Parameters

  • Capacitor Type
    Ceramic Capacitor
  • Space Standard
    MIL-PRF-49467
  • Capacitance
    3300 pF
  • Voltage
    500 V
  • Surge Current
    30 mA
  • Dielectric Material
    BP C0G (NP0)
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Radially Leaded
  • RoHS Complaint
    Yes
  • Termination
    Lead (SnPb)
  • Form Factor
    HS21
  • Dimension
    0.320 x 0.280 x 0.250 Inches (L x H x T)
