0.06 Farad Tantalum based Hybrid Capacitor

SKU: TDB3016603

Space Qualified Capacitor by Quantic Evans (55 more products)
Download Datasheet Request Information

Note : Your request will be directed to Quantic Evans.

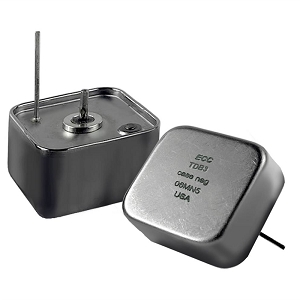

TDB3016603 Image

The TDB3016603 from Quantic Evans is a Space Qualified Capacitor with Capacitance 60000 uF, Voltage 9.6 to 16 V, ESR 30 mOhms, Surge Voltage 17.6 V, Leakage Current 2.25 mA(DCL). Tags: Radially Leaded. More details for TDB3016603 can be seen below.

Product Specifications

Product Details

  • Part Number
    TDB3016603
  • Manufacturer
    Quantic Evans
  • Description
    0.06 Farad Tantalum based Hybrid Capacitor

General Parameters

  • Capacitor Type
    Tantalum Capacitor
  • Space Standard
    MIL-STD-202
  • Capacitance
    60000 uF
  • Voltage
    9.6 to 16 V
  • ESR
    30 mOhms
  • Surge Voltage
    17.6 V
  • Leakage Current
    2.25 mA(DCL)
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Radially Leaded
  • RoHS Complaint
    Yes
  • Dimension
    1 x 1 x 0.62 Inches(L x W x H)
  • Note
    mass : 61 g
