0.0375 Farad Tantalum based Hybrid Capacitor

SKU: TDB5035383

Space Qualified Capacitor by Evans
229 more products
Download Datasheet Request Information

Note : Your request will be directed to Evans.

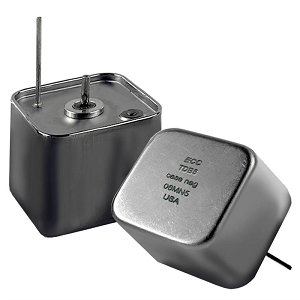

TDB5035383 Image

The TDB5035383 from Evans is a Space Qualified Capacitor with Capacitance 37500 uF, Voltage 21 to 35 V, ESR 25 mOhms, Surge Voltage 38.5 V, Leakage Current 3.50 mA(DCL). Tags: Radially Leaded. More details for TDB5035383 can be seen below.

Product Specifications

Product Details

  • Part Number
    TDB5035383
  • Manufacturer
    Evans
  • Description
    0.0375 Farad Tantalum based Hybrid Capacitor

General Parameters

  • Capacitor Type
    Tantalum Capacitor
  • Space Standard
    MIL-STD-202
  • Capacitance
    37500 uF
  • Voltage
    21 to 35 V
  • ESR
    25 mOhms
  • Surge Voltage
    38.5 V
  • Leakage Current
    3.50 mA(DCL)
  • Operating Temperature
    -55 to 125 Degree C
  • Package Type
    Radially Leaded
  • RoHS Complaint
    Yes
  • Dimension
    1 x 1 x 0.912 Inches(L x W x H)
  • Note
    mass : 87 g

Technical Documents
