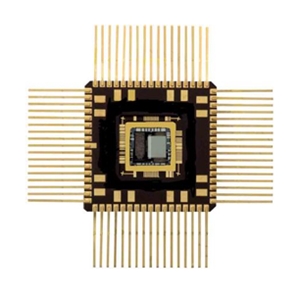

HX6136

Space Qualified Memory by Honeywell Aerospace (18 more products)
Download Datasheet Request Information

Note : Your request will be directed to Honeywell Aerospace.

The HX6136 from Honeywell Aerospace is a Space Qualified Memory with Storage Capacity 36 Mb, Read Access Time 36 ns, Write Access Time 36 ns, Bit Size 9 Bits, Radiation Dose 1x106 rad(Si). More details for HX6136 can be seen below.

Product Specifications

Product Details

  • Part Number
    HX6136
  • Manufacturer
    Honeywell Aerospace
  • Description
    HX6409 is a 4096-word by 9-bit memory array; the HX6218 is a 2048-word by 18-bit memory array; and the HX6136 is a 1024-word by 36-bit memory array

General Parameters

  • Memory Type
    SRAM
  • Storage Capacity
    36 Mb
  • Volatility
    Volatile
  • Read Access Time
    36 ns
  • Write Access Time
    36 ns
  • Bit Size
    9 Bits
  • Output Waveform
    RICMOS, CMOS
  • Radiation Dose
    1x106 rad(Si)
  • Soft Error Rate
    1x10-10 upsets/bit-day
  • Dose Rate Upset
    1x109 rad(Si)/s
  • Dose Rate Survivability
    1x1011 rad(Si)/s
  • Voltage
    5 V
  • Operating Temperature
    -55 to 125 Degree C
  • Package
    32-Lead CFP, 68-Lead CQFP, 132-Lead CQFP
