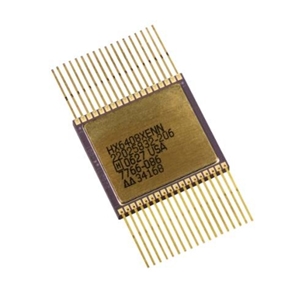

HX6408

Space Qualified Memory by Honeywell Aerospace (18 more products)
Download Datasheet Request Information

Note : Your request will be directed to Honeywell Aerospace.

The HX6408 from Honeywell Aerospace is a Space Qualified Memory with Storage Capacity 512 Mb, Read Access Time 20 ns, Write Access Time 20 ns, Bit Size 512K x 8 Bits, Radiation Dose 1x106 rad(Si). More details for HX6408 can be seen below.

Product Specifications

Product Details

  • Part Number
    HX6408
  • Manufacturer
    Honeywell Aerospace
  • Description
    512K x 8 Radiation Hardened Static RAM is a high performance 524,288 word x 8-bit static random access memory.

General Parameters

  • Memory Type
    SRAM
  • Storage Capacity
    512 Mb
  • Volatility
    Volatile
  • Read Access Time
    20 ns
  • Write Access Time
    20 ns
  • Bit Size
    512K x 8 Bits
  • Output Waveform
    RICMOS, CMOS
  • Radiation Dose
    1x106 rad(Si)
  • Soft Error Rate
    1x10-10 upsets/bit-day
  • Dose Rate Upset
    1x10-10 upsets/bit-day
  • Dose Rate Survivability
    1x1012 rad(Si)/s
  • Voltage
    3.3 V
  • Current
    25 mA
  • Power Consumption
    5 to 710 mW
  • Operating Temperature
    -55 to 125 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • Package
    36-Lead Ceramic Flat Pack
  • Application
    Space and military
