STM32L100R8/B

Space Qualified Microcontroller by STMicroelectronics (770 more products)

Note : Your request will be directed to STMicroelectronics.

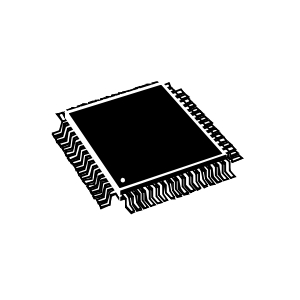

STM32L100R8/B Image

The STM32L100R8/B from STMicroelectronics is a Space Qualified Microcontroller with Clock Rate 32 kHz to 24 MHz, Operating Frequency 32 MHz, Internal RAM Memory 8 to 10 kB, Flash Memory 64 to 128 kB, Internal ROM Memory 2 kB. Tags: Surface Mount. More details for STM32L100R8/B can be seen below.

Product Specifications

Product Details

  • Part Number
    STM32L100R8/B
  • Manufacturer
    STMicroelectronics
  • Description
    Ultra-low-power 32-bit MCU ARMbased CortexM3, 128KB Flash, 10KB SRAM, 2KB EEPROM

General Parameters

  • Bit
    32 Bits
  • Processor
    32-bit MCU
  • Component
    ADC, DAC, Temperature Sensor
  • Clock Rate
    32 kHz to 24 MHz
  • Oscillator Type
    Crystal Oscillator
  • Operating Frequency
    32 MHz
  • Internal RAM Memory
    8 to 10 kB
  • Flash Memory
    64 to 128 kB
  • Internal ROM Type
    EEPROM
  • Internal ROM Memory
    2 kB
  • Supply Voltage
    1.8 to 3.6 V
  • Current Consumption
    0.05 to 11 mA
  • Sleep Current
    30 to 2500 uA
  • Interface
    SPI, I2S, I2C, USART, USB 2.0, GPIO
  • Operating Temperature
    -40 to 85 Degree C, -40 to 105 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • Package Type
    Surface Mount
  • Package
    LQFP64
  • Application
    Medical and handheld equipment, Application control and user interface, PC peripherals, gaming, GPS and sport equipment, Alarm systems, wired and wireless sensors, video intercom, Utility metering
  • Dimension
    10 x 10 mm
