Space Qualified GaN Power Amplifier for Lunar Landing Applications

SKU: SSPA 8.4-8.6-30

RF Amplifier by Aethercomm

Note : Your request will be directed to Aethercomm.

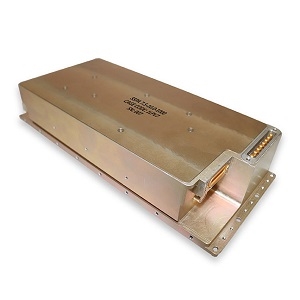

SSPA 8.4-8.6-30 Image

The SSPA 8.4-8.6-30 from Aethercomm is a RF Amplifier with Frequency 8.4 to 8.6 GHz, Output Power 44.77 dBm (Linear), Output Power 30 W (Linear), Input Power 10 dBm, PAE 25 to 27 %. Tags: Power Amplifier. More details for SSPA 8.4-8.6-30 can be seen below.

Product Specifications

Product Details

  • Part Number
    SSPA 8.4-8.6-30
  • Manufacturer
    Aethercomm
  • Description
    Space Qualified GaN Power Amplifier for Lunar Landing Applications

General Parameters

  • Type
    Power Amplifier
  • Configuration
    Module with Connector
  • Frequency
    8.4 to 8.6 GHz
  • Output Power
    44.77 dBm (Linear)
  • Output Power
    30 W (Linear)
  • Input Power
    10 dBm
  • PAE
    25 to 27 %
  • Modulation
    OQPSK
  • VSWR
    29:01:00
  • Harmonics
    -35 dBc
  • Space Heritage
    Yes
  • Space Mission
    Falcon 9
  • Supply Voltage
    28 V
  • Current Consumption
    5.75 A
  • Transistor Technology
    GaN
  • Dimensions
    5.0” (L) by 2.0” (W) by 1.0” (H)
  • Space Qualified
    Yes
  • Input Connector
    SMA - Female
  • Output Connector
    TNC - Female
  • DC Connectors
    9-Pin Hermetic DSUB
  • Weight
    0.75 lbs
