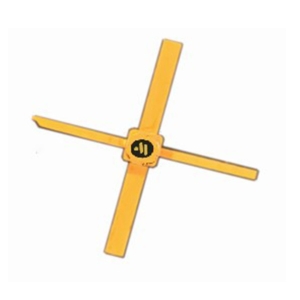

6 to 13 dBm Gain Block Amplifier from DC to 4 GHz

SKU: ADH395S

RF Amplifier by Analog Devices
44 more products
Download Datasheet Request Information

Note : Your request will be directed to Analog Devices.

The ADH395S from Analog Devices is a RF Amplifier with Frequency DC to 4 GHz, Gain 11 to 13 dB, Noise Figure 4.5 dB, P1dB 0.004 to 0.02 W, IP3 24.5 to 33.5 dBm. Tags: Surface Mount. More details for ADH395S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADH395S
  • Manufacturer
    Analog Devices
  • Description
    6 to 13 dBm Gain Block Amplifier from DC to 4 GHz

General Parameters

  • Configuration
    IC/MMIC/SMT
  • Frequency
    DC to 4 GHz
  • Gain
    11 to 13 dB
  • Noise Figure
    4.5 dB
  • P1dB
    0.004 to 0.02 W
  • IP3
    24.5 to 33.5 dBm
  • IP3
    0.281 to 2.23 W
  • Grade
    Space Qualified
  • Industry Application
    Aerospace & Defense, SATCOM, Broadcast, Test & Measurement, Military, Electronic Warfare
  • Reverse Isolation
    19 dB
  • Return Loss
    13 to 18 dB
  • Input Return Loss
    16 to 18 dB
  • Output Return Loss
    13 to 18 dB
  • P1dB
    6 to 13 dBm
  • Supply Voltage
    4.5 to 5.5 V
  • Power Dissipation
    0.271 W
  • Current Consumption
    50 mA
  • Quiscent Current
    65 mA
  • Transistor Technology
    GaAs InGaP HBT
  • Package Type
    Surface Mount
  • Package
    8 Lead Hermetic SMT Package
  • Pulsed/CW
    CW
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • Space Standard
    MIL-PRF-38534
  • Standard
    MIL-PRF-38534 Class K
  • Sub-Category
    Cascadable Amplifier
  • Application
    VSAT

Technical Documents
