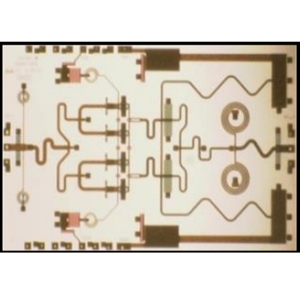

Wide Band GaAs MMIC Amplifier from 2 to 8 GHz

SKU: MAAM28000

RF Amplifier by MACOM
35 more products
Download Datasheet Request Information

Note : Your request will be directed to MACOM.

The MAAM28000 from MACOM is a RF Amplifier with Frequency 2 to 8 GHz, Gain 16 to 18 dB, Noise Figure 4 to 7.5 dB, Output Power 14 dBm, Output Power 0.02 W. Tags: Die, Distributed Amplifier, Driver Amplifier, Buffer Amplifier. More details for MAAM28000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MAAM28000
  • Manufacturer
    MACOM
  • Description
    Wide Band GaAs MMIC Amplifier from 2 to 8 GHz

General Parameters

  • Type
    Distributed Amplifier, Driver Amplifier, Buffer Amplifier
  • Frequency
    2 to 8 GHz
  • Gain
    16 to 18 dB
  • Noise Figure
    4 to 7.5 dB
  • Output Power
    14 dBm
  • Output Power
    0.02 W
  • IP3
    24 dBm
  • IP3
    0.25 W
  • Industry Application
    SATCOM, Radar, Electronic Warfare
  • Impedance
    50 Ohms
  • Reverse Isolation
    40 dB
  • VSWR
    1.30:1, 1.70:1
  • Input VSWR
    1.70:1
  • Output VSWR
    1.30:1
  • Supply Voltage
    14 V
  • Current Consumption
    60 to 100 mA
  • Transistor Technology
    MESFET
  • Technology
    GaAs
  • Package Type
    Die
  • Pulsed/CW
    CW
  • Operating Temperature
    -55 to 125 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • RoHS
    Yes
