HEMT Low Noise Amplifier from 92 to 96 GHz

SKU: ALH394

43 more products
Download Datasheet Request Information

Note : Your request will be directed to Northrop Grumman Corporation.

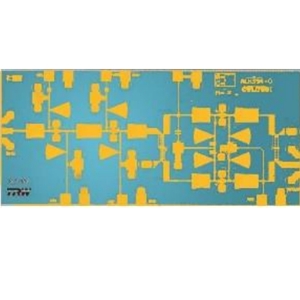

ALH394 Image

The ALH394 from Northrop Grumman Corporation is a RF Amplifier with Frequency 92 to 96 GHz, Gain 17 dB (Linear), Noise Figure 5 dB, P1dB 0.004 W, Input Return Loss 2 dB. Tags: Die, Low Noise Amplifier. More details for ALH394 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALH394
  • Manufacturer
    Northrop Grumman Corporation
  • Description
    HEMT Low Noise Amplifier from 92 to 96 GHz

General Parameters

  • Type
    Low Noise Amplifier
  • Configuration
    IC/MMIC/SMT
  • Frequency
    92 to 96 GHz
  • Gain
    17 dB (Linear)
  • Noise Figure
    5 dB
  • P1dB
    0.004 W
  • Industry Application
    Radar, Commercial
  • Return Loss
    2 to 7 dB
  • Input Return Loss
    2 dB
  • Output Return Loss
    7 dB
  • P1dB
    5 dBm
  • Supply Voltage
    2 V
  • Current Consumption
    7 to 20 mA
  • Transistor Technology
    HEMT
  • Package Type
    Die
  • Pulsed/CW
    CW
  • Dimensions
    3.25 x 1.5 mm
  • Standards Supported
    WLAN
  • Application
    Millimeter-wave Imaging, Sensors, Short Haul / High capacity Links, Radio
