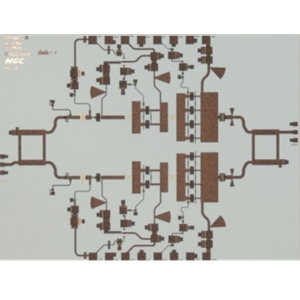

High Power Amplifier from 81 to 86 GHz

SKU: APH667

Download Datasheet Request Information

Note : Your request will be directed to Northrop Grumman Corporation.

The APH667 from Northrop Grumman Corporation is a RF Amplifier with Frequency 81 to 86 GHz, Gain 13.5 to 14 dB (Linear), Saturated Power 0.282 to 0.355 W, Input Return Loss 16 to 20 dB, Supply Voltage 4 V. Tags: Die, Power Amplifier. More details for APH667 can be seen below.

Product Specifications

Product Details

  • Part Number
    APH667
  • Manufacturer
    Northrop Grumman Corporation
  • Description
    High Power Amplifier from 81 to 86 GHz

General Parameters

  • Type
    Power Amplifier
  • Configuration
    IC/MMIC/SMT
  • Application
    Communication Systems, Short Haul / High Capacity Links, Wireless Fiber Replacement, Radio
  • Frequency
    81 to 86 GHz
  • Gain
    13.5 to 14 dB (Linear)
  • Saturated Power
    0.282 to 0.355 W
  • Return Loss
    14 to 20 dB
  • Input Return Loss
    16 to 20 dB
  • Output Return Loss
    14 to 19 dB
  • Supply Voltage
    4 V
  • Current Consumption
    270 to 360 mA
  • Transistor Technology
    pHEMT
  • Technology
    GaAs
  • Package Type
    Die
  • Dimensions
    3.79 x 2.92 mm
  • Space Qualified
    Yes

Technical Documents
