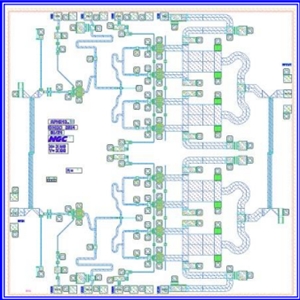

GaN Power Amplifier from 24 to 28 GHz

SKU: APN243

Download Datasheet Request Information

Note : Your request will be directed to Northrop Grumman Corporation.

The APN243 from Northrop Grumman Corporation is a RF Amplifier with Frequency 24 to 28 GHz, Gain 18 to 20 dB (Linear), P1dB 6.31 W, Saturated Power 8.913 to 11.221 W, Input Return Loss 18 to 20 dB. Tags: Die, Power Amplifier. More details for APN243 can be seen below.

Product Specifications

Product Details

  • Part Number
    APN243
  • Manufacturer
    Northrop Grumman Corporation
  • Description
    GaN Power Amplifier from 24 to 28 GHz

General Parameters

  • Type
    Power Amplifier
  • Configuration
    IC/MMIC/SMT
  • Application
    Point-to-Point, Point-to-Multipoint, Radio, Communication, Space Research & Earth Exploration
  • Frequency
    24 to 28 GHz
  • Gain
    18 to 20 dB (Linear)
  • P1dB
    6.31 W
  • Saturated Power
    8.913 to 11.221 W
  • Return Loss
    15 to 20 dB
  • Input Return Loss
    18 to 20 dB
  • Output Return Loss
    15 to 20 dB
  • Supply Voltage
    28 V
  • Current Consumption
    200 to 800 mA
  • Transistor Technology
    HEMT
  • Technology
    GaN
  • Package Type
    Die
  • Dimensions
    3.8 x 3.8 mm
  • Space Qualified
    Yes

Technical Documents
