High Frequency Low Noise Amplifier from 2 to 8 GHz

SKU: BXHF1058

RF Amplifier by Spectrum Control
47 more products
Download Datasheet Request Information

Note : Your request will be directed to Spectrum Control.

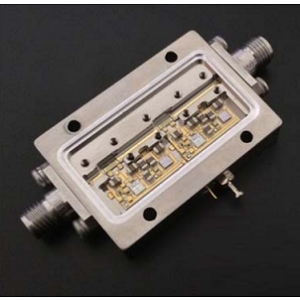

BXHF1058 Image

The BXHF1058 from Spectrum Control is a RF Amplifier with Frequency 2 to 8 GHz, Gain 21.5 to 22.5 dB, Noise Figure 2.5 to 3 dB, P1dB 0.079 to 0.1 W, IP2 33 dBm. Tags: Module with Connectors, Low Noise Amplifier. More details for BXHF1058 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BXHF1058
  • Manufacturer
    Spectrum Control
  • Description
    High Frequency Low Noise Amplifier from 2 to 8 GHz

General Parameters

  • Type
    Low Noise Amplifier
  • Frequency
    2 to 8 GHz
  • Gain
    21.5 to 22.5 dB
  • Noise Figure
    2.5 to 3 dB
  • P1dB
    0.079 to 0.1 W
  • IP2
    33 dBm
  • IP2
    1.995 W
  • IP3
    25 dBm
  • IP3
    0.316 W
  • Industry Application
    Defense, Space
  • Input Power
    13 dBm
  • Input Power
    0.02 W
  • Impedance
    50 Ohms
  • Reverse Isolation
    30 dB
  • VSWR
    1.50:1, 2.00:1
  • Input VSWR
    1.50:1, 2.00:1
  • Output VSWR
    1.50:1, 2.00:1
  • P1dB
    19 to 20 dBm
  • Supply Voltage
    12 V
  • Current Consumption
    230 to 250 mA
  • Package Type
    Module with Connectors
  • Pulsed/CW
    CW
  • Dimensions
    1.5 x 1.06 x 0.3 Inches
  • Connectors
    SMA, SMA - Female
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 85 Degree C
  • RoHS
    Yes
