Low Noise High Frequency 8000 to 9000 MHz

SKU: BXHF1275

Download Datasheet Request Information

Note : Your request will be directed to Spectrum Control.

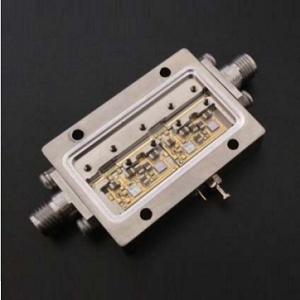

BXHF1275 Image

The BXHF1275 from Spectrum Control is a RF Amplifier with Frequency 8 to 9 GHz, Gain 23 to 25 dB, Noise Figure 3 to 3.5 dB, P1dB 0.045 W, IP2 33 dBm. Tags: Module with Connectors, Low Noise Amplifier. More details for BXHF1275 can be seen below.

Product Specifications

Product Details

  • Part Number
    BXHF1275
  • Manufacturer
    Spectrum Control
  • Description
    Low Noise High Frequency 8000 to 9000 MHz

General Parameters

  • Type
    Low Noise Amplifier
  • Frequency
    8 to 9 GHz
  • Gain
    23 to 25 dB
  • Noise Figure
    3 to 3.5 dB
  • P1dB
    0.045 W
  • IP2
    33 dBm
  • IP2
    1.995 W
  • IP3
    26 dBm
  • IP3
    0.398 W
  • Input Power
    13 dBm
  • Input Power
    0.02 W
  • Impedance
    50 Ohms
  • Reverse Isolation
    50 dB
  • VSWR
    1.75:1, 2.00:1
  • Input VSWR
    1.75:1, 2.00:1
  • Output VSWR
    1.75:1, 2.00:1
  • Supply Voltage
    5 V
  • Current Consumption
    150 to 165 mA
  • Package Type
    Module with Connectors
  • Dimensions
    1.5 x 1.06 x 0.3 Inches
  • Connectors
    SMA, SMA - Female
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 85 Degree C
