20W Solid State Power Amplifier from 5.5 to 8.5 GHz

SKU: TA1165

RF Amplifier by Triad RF Systems
4 more products
Download Datasheet Request Information

Note : Your request will be directed to Triad RF Systems.

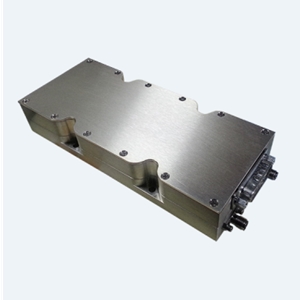

TA1165 Image

The TA1165 from Triad RF Systems is a RF Amplifier with Frequency 5.5 to 8.5 GHz, Small Signal Gain 48 to 52.5 dB, Gain Flatness 2 dB, Saturated Power 15.8 to 19.95 W, Input Power -11 dBm. Tags: Module with Connectors, Power Amplifier. More details for TA1165 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TA1165
  • Manufacturer
    Triad RF Systems
  • Description
    20W Solid State Power Amplifier from 5.5 to 8.5 GHz

General Parameters

  • Type
    Power Amplifier
  • Frequency
    5.5 to 8.5 GHz
  • Small Signal Gain
    48 to 52.5 dB
  • Gain Flatness
    2 dB
  • Saturated Power
    15.8 to 19.95 W
  • Input Power
    -11 dBm
  • Class
    Class AB
  • Return Loss
    -14 dB
  • Input Return Loss
    -14 dB
  • Space Heritage
    Yes
  • Switching Time
    1 to 2 uS
  • Supply Voltage
    12 to 30 V
  • Current Consumption
    0.63 to 4.5 A
  • Technology
    GaN
  • Package Type
    Module with Connectors
  • Pulsed/CW
    CW
  • Dimensions
    152.4 x 63.5 x 27 mm
  • Connectors
    SMA, SMA - Female
  • Input Connector
    SMA - Female
  • Output Connector
    SMA - Female
  • Weight
    482 g
  • Saturated Power
    42 to 43 dBm
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
  • Sub-Category
    GaN Amplifier, SSPA
  • Application
    Low Earth Orbit Downlink/Interlink Amplification, DVB (and variants) Data Transmission
