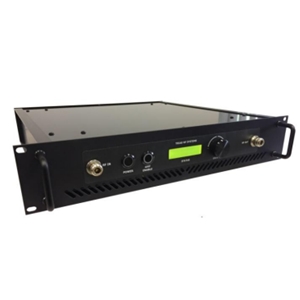

100 W Dual Bi-Directional Amplifier from 400 to 450 MHz

SKU: TTRR1086

RF Amplifier by Triad RF Systems

Note : Your request will be directed to Triad RF Systems.

The TTRR1086 from Triad RF Systems is a RF Amplifier with Frequency 400 to 450 MHz, Gain 14 to 36 dB, Gain Flatness 1 dB, Noise Figure 2 to 2.5 dB, P1dB 0.015 W. Tags: Benchtop / Rackmount, Power Amplifier. More details for TTRR1086 can be seen below.

Product Specifications

Product Details

  • Part Number
    TTRR1086
  • Manufacturer
    Triad RF Systems
  • Description
    100 W Dual Bi-Directional Amplifier from 400 to 450 MHz

General Parameters

  • Type
    Power Amplifier
  • Configuration
    System
  • Frequency
    400 to 450 MHz
  • Gain
    14 to 36 dB
  • Gain Flatness
    1 dB
  • Noise Figure
    2 to 2.5 dB
  • P1dB
    0.015 W
  • Saturated Power
    100 W
  • Input Return Loss
    -14 to -12 dB
  • Switching Time
    1 to 2 uS
  • AC Voltage
    85 to 264 V
  • Package Type
    Benchtop / Rackmount
  • Dimensions
    17 x 19 x 3.47 Inches
  • Space Qualified
    Yes
  • Connectors
    N Type, N Type - Female
  • Operating Temperature
    -10 to 50 Degree C
