  5. CHA8710-QDB

25W X-Band High Power Amplifier

SKU: CHA8710-QDB

Download Datasheet Request Information

Note : Your request will be directed to United Monolithic Semiconductors.

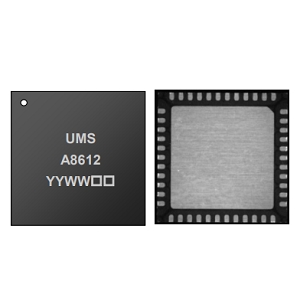

CHA8710-QDB Image

The CHA8710-QDB from United Monolithic Semiconductors is a RF Amplifier with Frequency 8.5 to 10.5 GHz, Gain 28.5 to 29.5 dB (Linear), Output Power 43 to 44.4 dBm, Output Power 19.95 to 27.54 W, Input Power 33 dBm. Tags: Surface Mount, Power Amplifier. More details for CHA8710-QDB can be seen below.

Product Specifications

Product Details

  • Part Number
    CHA8710-QDB
  • Manufacturer
    United Monolithic Semiconductors
  • Description
    25W X-Band High Power Amplifier

General Parameters

  • Type
    Power Amplifier
  • Configuration
    IC/MMIC/SMT
  • Application
    Communication
  • Frequency
    8.5 to 10.5 GHz
  • Gain
    28.5 to 29.5 dB (Linear)
  • Output Power
    43 to 44.4 dBm
  • Output Power
    19.95 to 27.54 W
  • Input Power
    33 dBm
  • Input Power
    0.1995 W
  • Duty Cycle
    10%
  • Return Loss
    8 to 12 dB
  • Input Return Loss
    8 to 11 dB
  • Output Return Loss
    9 to 12 dB
  • Supply Voltage
    25 to 30 V (Drain)
  • Current Consumption
    1.95 to 2.3 A
  • Quiscent Current
    750 mA
  • Transistor Technology
    HEMT
  • Technology
    GaN
  • Package Type
    Surface Mount
  • Package
    46 Leads QFN 7x7
  • Dimensions
    7 x 7 mm
  • Space Qualified
    Yes
  • Operating Temperature
    -30 to 85 Degree C
  • Storage Temperature
    -55 to 150 Degree C
