IRHE9230

Space Qualified MOSFETs by Infineon Technologies (301 more products)

Note : Your request will be directed to Infineon Technologies.

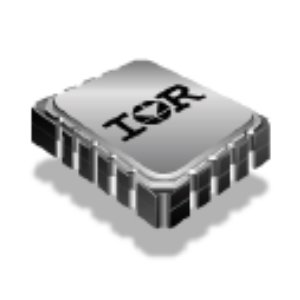

IRHE9230 Image

The IRHE9230 from Infineon Technologies is a Space Qualified MOSFETs with Continous Drain Current -4 A, Drain Source Resistance 800 milliohm, Drain Source Breakdown Voltage -200 V, Gate Source Voltage -20 to 20 V, Gate Source Threshold Voltage -4 to -2 V. Tags: Surface Mount. More details for IRHE9230 can be seen below.

Product Specifications

Product Details

  • Part Number
    IRHE9230
  • Manufacturer
    Infineon Technologies
  • Description
    Single P-Channel Rad-Hard MOSFET

General Parameters

  • Segment
    Satellite
  • Types of MOSFET
    P-Channel Enhancement Mode
  • Transistor Polarity
    P-Channel
  • Number of Channels
    Single
  • Continous Drain Current
    -4 A
  • Drain Source Resistance
    800 milliohm
  • Drain Source Breakdown Voltage
    -200 V
  • Gate Source Voltage
    -20 to 20 V
  • Gate Source Threshold Voltage
    -4 to -2 V
  • Gate Charge
    45 nC
  • Power Dissipation
    25 W
  • Temperature operating range
    -55 to 150 Degree C
  • Package Type
    Surface Mount
  • Package
    18-pin LCC
