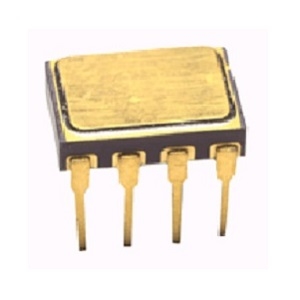

Hermetically Sealed, Low IF, Wide VCC, High Gain Optocouplers

SKU: 5962-8978503K

Space Qualified Optocoupler by Broadcom (120 more products)

Note : Your request will be directed to Broadcom.

The 5962-8978503K from Broadcom is a Space Qualified Optocoupler with Forward Voltage 1 to 1.8 V, Power Consumption 50 to 200 mW, Capacitance 4 pF, Collector-Emitter Saturation Voltage 0.11 V, Common Mode Transient Immunity 500 to 1000 V/us. Tags: Through Hole. More details for 5962-8978503K can be seen below.

Product Specifications

Product Details

  • Part Number
    5962-8978503K
  • Manufacturer
    Broadcom
  • Description
    Hermetically Sealed, Low IF, Wide VCC, High Gain Optocouplers

General Parameters

  • Space Standard
    MIL-PRF-38534
  • Forward Voltage
    1 to 1.8 V
  • Power Consumption
    50 to 200 mW
  • Capacitance
    4 pF
  • Collector-Emitter Saturation Voltage
    0.11 V
  • Common Mode Transient Immunity
    500 to 1000 V/us
  • Current Transfer Ratio
    200 to 1500 %
  • Propagation Delay
    2 to 100 uS
  • Reverse Breakdown Voltage
    5 V
  • Storage Temperature
    -65 to 150 Degree C
  • Operating Temperature
    -55 to 125 Degree C
  • Package
    Hermetic 8 Pin DIP
  • Package Type
    Through Hole
  • Application
    Military, Aerospace, High Reliability Systems, Microprocessor system interface, Transportation, Medical, Life Critical Systems, Isolated Input Line Receiver, EIA RS-232-C line receiver, Voltage Level Shifting, Isolated input line receiver, Isolated output line driver, Logic ground isolation, Harsh industrial environments, Current loop receiver, System test equipment isolation, Process control input/output isolation
