Hermetically Sealed Low IF, Wide VCC, Logic Gate Optocouplers

SKU: HCPL-520K

Space Qualified Optocoupler by Broadcom (120 more products)

Note : Your request will be directed to Broadcom.

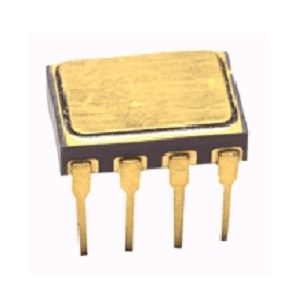

HCPL-520K Image

The HCPL-520K from Broadcom is a Space Qualified Optocoupler with Forward Voltage 1 to 1.8 V, Power Consumption 200 mW, Common Mode Transient Immunity 1000 to 10000 V/us, Propagation Delay 118 to 350 nS, Reverse Breakdown Voltage 3 V. Tags: Through Hole. More details for HCPL-520K can be seen below.

Product Specifications

Product Details

  • Part Number
    HCPL-520K
  • Manufacturer
    Broadcom
  • Description
    Hermetically Sealed Low IF, Wide VCC, Logic Gate Optocouplers

General Parameters

  • Space Standard
    MIL-PRF-38534
  • Forward Voltage
    1 to 1.8 V
  • Power Consumption
    200 mW
  • Common Mode Transient Immunity
    1000 to 10000 V/us
  • Propagation Delay
    118 to 350 nS
  • Reverse Breakdown Voltage
    3 V
  • Storage Temperature
    -65 to 150 Degree C
  • Operating Temperature
    -55 to 125 Degree C
  • Package
    Hermetic 8 Pin DIP
  • Package Type
    Through Hole
  • Application
    Military, Aerospace, High reliability systems, Transportation, Life Critical Systems, High-speed line receiver, Isolated bus driver (single channel), Pulse transformer replacement, Ground loop elimination, Harsh industrial environments, Computer-peripheral interfaces
