5x7mm Surface Mount TCXO's for Cospas-Sarsat Beacons

SKU: CSBxx

Space Qualified Oscillator by Connor-Winfield Corporation
167 more products
Download Datasheet Request Information

Note : Your request will be directed to Connor-Winfield Corporation.

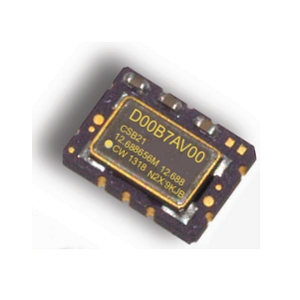

CSBxx Image

The CSBxx from Connor-Winfield Corporation is a Space Qualified Oscillator with Frequency 10 to 20 MHz, Temperature Stability ±0.22 ppm, Supply Voltage 2.97 to 3.63 V, Output Current 13 to 2.1 mA, Rise/Fall Time 8 ns. Tags: Surface Mount. More details for CSBxx can be seen below.

Product Specifications

Product Details

  • Part Number
    CSBxx
  • Manufacturer
    Connor-Winfield Corporation
  • Description
    5x7mm Surface Mount TCXO's for Cospas-Sarsat Beacons

General Parameters

  • Oscillator Type
    TCXO
  • Frequency
    10 to 20 MHz
  • Temperature Stability
    ±0.22 ppm
  • Supply Voltage
    2.97 to 3.63 V
  • Output Waveform
    LVCMOS, Clipped Sinewave
  • Output Current
    13 to 2.1 mA
  • Rise/Fall Time
    8 ns
  • Start-Up Time
    10 ms
  • RoHS Compliant
    Yes
  • Operating Temperature
    -40 to 55 Degree C
  • Storage Temperature
    -40 to 85 Degree C
  • Package Type
    Surface Mount
  • Dimension
    5 x 7 mm
