Hi–Rel Clock Oscillators (XO)

SKU: 1504

Space Qualified Oscillator by Microchip Technology
101 more products
Download Datasheet Request Information

Note : Your request will be directed to Microchip Technology.

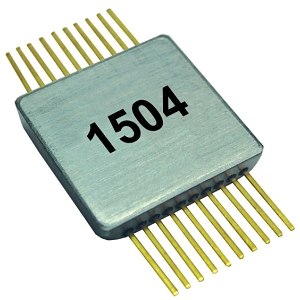

1504 Image

The 1504 from Microchip Technology is a Space Qualified Oscillator with Frequency 12 to 100 MHz, Frequency Stability ±50 ppm, Supply Voltage 3.63 / 5.5 V, Output Current 10 / 45 mA, Rise/Fall Time 3 to 5 nS. More details for 1504 can be seen below.

Product Specifications

Product Details

  • Part Number
    1504
  • Manufacturer
    Microchip Technology
  • Description
    Hi–Rel Clock Oscillators (XO)

General Parameters

  • Space Standard
    MIL-PRF-55310, MIL-PRF-38534
  • Frequency
    12 to 100 MHz
  • Frequency Stability
    ±50 ppm
  • Supply Voltage
    3.63 / 5.5 V
  • Output Waveform
    ACMOS
  • Output Current
    10 / 45 mA
  • Rise/Fall Time
    3 to 5 nS
  • Start-Up Time
    10 mS
  • Operating Temperature
    -55 to 125 Degree C
  • Storage Temperature
    -65 to 125 Degree C
  • Application
    Deep Space Exploration, Commercial, Defense Satellites, Ground Base ICBM Silos
