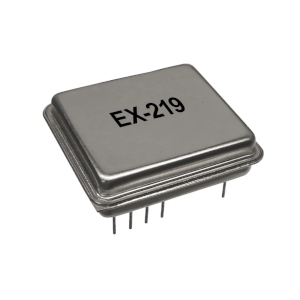

The EX-219 from Microchip Technology is a Space Qualified Oscillator with an operating frequency of 10-120 MHz and a frequency stability range of +/- 50-150 ppm. It produces HCMOS or Sinewave output and has an aging factor of +/-2 ppb (per day) and +/-1000 ppb (10 years). This oven-controlled oscillator has a harmonics value of -30 dBc and a spurious value of -80 dBc. It has a typical output power of 0-9 dBm and a phase noise of -80 to -155 dBc/Hz. The oscillator has a radiation tolerance TID of up to 100krad (Si). It requires a supply voltage of 3.13-5.25 V and has a power consumption of 0.7-1.2 W. The oscillator has a mass of 7 g and measures 24 x 26 x 10 mm. It is suitable for applications such as deep space exploration, commercial, and defense satellites, and ground base ICBM silos.
