1-125 MHz Space-Qualified Oven Controlled Crystal Oscillator

SKU: QT4200

Space Qualified Oscillator by Q-Tech Corporation
152 more products
Download Datasheet Request Information

Note : Your request will be directed to Q-Tech Corporation.

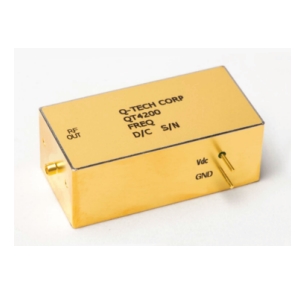

QT4200 Image

The QT4200 from Q-Tech Corporation is a Space Qualified Oscillator with a frequency range of 1-125 MHz and a spurious value of -90 dBc. The OCXO requires a supply voltage of 5-15 V and temperature stability of ±10 ppb, ±20 ppb, ±100 ppb and ±200 ppb. The oscillator has an output power of 2.7-4.8 W and provides HCMOS and Sinewave output. The oscillator has a weight of 100g and measures 50.8 x 25.4 x 19.05 mm. This oven-controlled crystal oscillator is MIL-PRF-55310 space-qualified and is designed to meet requirements for space-grade applications, control and measurement, and signal processing.

Product Specifications

Product Details

  • Part Number
    QT4200
  • Manufacturer
    Q-Tech Corporation
  • Description
    1-125 MHz Space-Qualified Oven Controlled Crystal Oscillator

General Parameters

  • Oscillator Type
    OCXO
  • Space Standard
    MIL-PRF-55310
  • Frequency
    1 to 125 MHz
  • Spurious
    -90 dBc
  • Temperature Stability
    ±10 ppb, ±20 ppb, ±100 ppb, ±200 ppb
  • Output Power
    2.7 to 4.8 W
  • Supply Voltage
    5 to 15 V
  • Output Waveform
    HCMOS, Sinewave
  • Weight
    100 g
  • Operating Temperature
    -40 to 75 Degree C
  • Package Type
    Module
  • Application
    Designed to meet today’s requirements for Space Grade applications, Control and measurement, Signal processing
  • Dimension
    50.8 x 25.4 x 19.05 mm
