Ultra Precision Resistor 1-2-3 Network

SKU: SLD Series

Space Qualified Resistor by Alpha Electronics
90 more products
Download Datasheet Request Information

Note : Your request will be directed to Alpha Electronics.

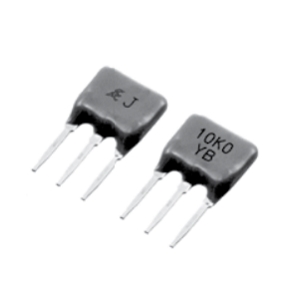

SLD Series Image

The SLD Series from Alpha Electronics is a Space Qualified Resistor with Resistance 50 Ohms to 30 kOhms, Power Rating 0.25 W, Tolerance ±0.05 to 0.1%, Operating Temperature -65 to 150 Degree C. Tags: Through Hole. More details for SLD Series can be seen below.

Product Specifications

Product Details

  • Part Number
    SLD Series
  • Manufacturer
    Alpha Electronics
  • Description
    Ultra Precision Resistor 1-2-3 Network

General Parameters

  • Resistor Type
    Network Resistor
  • Resistance
    50 Ohms to 30 kOhms
  • Power Rating
    0.25 W
  • Tolerance
    ±0.05 to 0.1%
  • Operating Temperature
    -65 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±2.5 to 5 ppm/ Degree C
  • RoHS Complaint
    Yes
  • Package Type
    Through Hole
  • Application
    Medical Testing Equipment, High Performance Audio Equipment, Precision Measuring Instruments, Aerospace, Military
  • Dimension
    7.5 x 7.5 x 2.2 mm
