Resistors Networks, Fixed, Film, High Reliability Space Use

SKU: J2050/D402-06

Space Qualified Resistor by KOA Global
19 more products
Download Datasheet Request Information

Note : Your request will be directed to KOA Global.

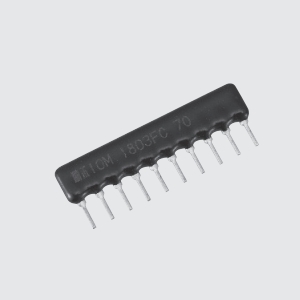

J2050/D402-06 Image

The J2050/D402-06 from KOA Global is a Space Qualified Resistor with Resistance 10 Ohms to 1 Mohms, Power Rating 0.375 to 0.625 W, Voltage 150 V, Tolerance ±1 to 5%, Operating Temperature -55 to 155 Degree C. Tags: Leaded. More details for J2050/D402-06 can be seen below.

Product Specifications

Product Details

  • Part Number
    J2050/D402-06
  • Manufacturer
    KOA Global
  • Description
    Resistors Networks, Fixed, Film, High Reliability Space Use

General Parameters

  • Resistor Type
    Network Resistor, Fixed Film Resistor
  • Space Standard
    JAXA-2050/J401
  • Resistance
    10 Ohms to 1 Mohms
  • Power Rating
    0.375 to 0.625 W
  • Voltage
    150 V
  • Substrate Material
    Solder plating (Pb containing)
  • Technology
    Fixed Film
  • Tolerance
    ±1 to 5%
  • Operating Temperature
    -55 to 155 Degree C
  • Temperature Coefficient of Resistance
    ±200 (x10^-6/K)
  • Package Type
    Leaded
  • Application
    Electrical equipment for Satellite, Space Station, Rocket and Space Transfer Vehicles
