Resistors Chip Fixed Metal Film High Reliabilty Space Use

SKU: J2050/J401-1005

Space Qualified Resistor by KOA Global
19 more products
Download Datasheet Request Information

Note : Your request will be directed to KOA Global.

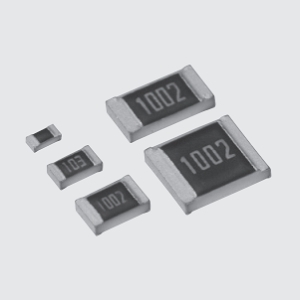

J2050/J401-1005 Image

The J2050/J401-1005 from KOA Global is a Space Qualified Resistor with Resistance 10 Ohms to 100 kOhms, Power Rating 32 mW, Voltage 50 to 75 V, Tolerance ±0.1 to 1%, Operating Temperature -55 to 125 Degree C. Tags: Surface Mount. More details for J2050/J401-1005 can be seen below.

Product Specifications

Product Details

  • Part Number
    J2050/J401-1005
  • Manufacturer
    KOA Global
  • Description
    Resistors Chip Fixed Metal Film High Reliabilty Space Use

General Parameters

  • Resistor Type
    Chip Resistor, Metal Film Resistor
  • Space Standard
    JAXA-2050/J401
  • Resistance
    10 Ohms to 100 kOhms
  • Power Rating
    32 mW
  • Voltage
    50 to 75 V
  • Substrate Material
    Solder plating (Pb containing)
  • Technology
    Metal Film
  • Tolerance
    ±0.1 to 1%
  • Operating Temperature
    -55 to 125 Degree C
  • Temperature Coefficient of Resistance
    ±10 to 50 (x10^-6/K)
  • Package Type
    Surface Mount
  • Application
    Electrical equipment for Satellite, Space Station, Rocket and Space Transfer Vehicles
  • Dimension
    1 x 0.5 x 0.2 mm
