10 kOhms to 50 GOhms Thick-Film Surface Mount Resistor

SKU: MCH (1206)

Space Qualified Resistor by Ohmcraft (8 more products)

Note : Your request will be directed to Ohmcraft.

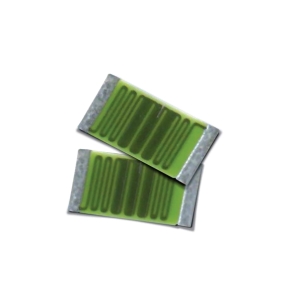

MCH (1206) Image

The MCH (1206) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. This thick-film high-voltage chip resistor has an extended TCR range of up to 200 ppm/ degrees C. It has a power rating of 330 mW and a voltage rating of 1500 V. It features patented Micropen precision printing technology that provides ultra-precision and thick-film high-voltage rating. The resistor is constructed using a thick film resistive element and a 96% alumina substrate. It is screened and qualified to MIL-PRF-55342, MIL-PRF-49462, and NASA EEE-INST-002 (level 1 & 2). This surface mount resistor measures 3.2 x 1.6 x 0.76 mm and is ideal for military, electronic warfare, and space applications.

Product Specifications

Product Details

  • Part Number
    MCH (1206)
  • Manufacturer
    Ohmcraft
  • Description
    10 kOhms to 50 GOhms Thick-Film Surface Mount Resistor

General Parameters

  • Resistor Type
    Chip Resistor, Wrap Around Resistor, Thick Film Resistor
  • Space Heritage
    Yes
  • Space Standard
    MIL-PRF-55342, MIL-PRF-49462, NASA IEEE EEE-INST-002
  • Resistance
    10 kOhms to 50 GOhms
  • Power Rating
    330 mW
  • Substrate Material
    Tin over nickel barrier, lead solder over nickel barrier, or gold
  • Technology
    Thick Film
  • Tolerance
    0.1 to 20 %
  • Operating Temperature
    -55 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±50 to 200 ppm/Degree C
  • RoHS Complaint
    Yes
  • Package Type
    Surface Mount
  • Application
    Military, Electronic Warfare, Space
  • Dimension
    3.2 x 1.6 x 0.76 mm
