RESISTOR FLANGE MOUNT 500 WATT

SKU: 31A1123F

Space Qualified Resistor by Smiths Interconnect
137 more products
Request Information

Note : Your request will be directed to Smiths Interconnect.

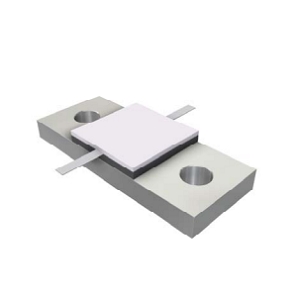

31A1123F Image

The 31A1123F from Smiths Interconnect is a Space Qualified Resistor with Resistance 10 to 150 Ohms, Power Rating 500 W, Operating Temperature -55 to 150 Degree C. Tags: Flange Mount. More details for 31A1123F can be seen below.

Product Specifications

Product Details

  • Part Number
    31A1123F
  • Manufacturer
    Smiths Interconnect
  • Description
    RESISTOR FLANGE MOUNT 500 WATT

General Parameters

  • Resistance
    10 to 150 Ohms
  • Power Rating
    500 W
  • Substrate Material
    Beryllium Oxide
  • Technology
    Thin Film
  • Operating Temperature
    -55 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±200 ppm/ Degree C
  • Package Type
    Flange Mount
  • Application
    Broadcast, High Power Filters, High Power Amplifiers, Isolators, Military, Instrumentation
