RESISTOR FLANGE MOUNT 100 WATT

SKU: 5654X,X-1004315

Space Qualified Resistor by Smiths Interconnect
137 more products
Request Information

Note : Your request will be directed to Smiths Interconnect.

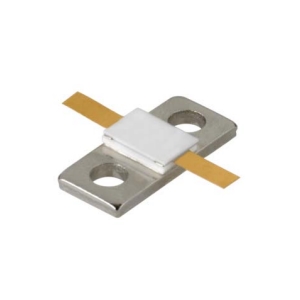

5654X,X-1004315 Image

The 5654X,X-1004315 from Smiths Interconnect is a Space Qualified Resistor with Resistance 25 to 250 Ohms, Power Rating 100 W, Operating Temperature -55 to 150 Degree C. Tags: Flange Mount. More details for 5654X,X-1004315 can be seen below.

Product Specifications

Product Details

  • Part Number
    5654X,X-1004315
  • Manufacturer
    Smiths Interconnect
  • Description
    RESISTOR FLANGE MOUNT 100 WATT

General Parameters

  • Resistance
    25 to 250 Ohms
  • Power Rating
    100 W
  • Substrate Material
    Beryllia, ASTM F356
  • Technology
    Thick film
  • Operating Temperature
    -55 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±200 ppm/ Degree C
  • Package Type
    Flange Mount
  • Application
    Broadcast, High Power Filters, High Power Amplifiers, Isolators, Military, Instrumentation
  • Dimension
    0.8 x 0.23 x 0.16 Inches
