10 Ohm to 1 MOhm Space Qualified Thin Film Chip Resistor

SKU: P0402

Space Qualified Resistor by Vishay
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Vishay.

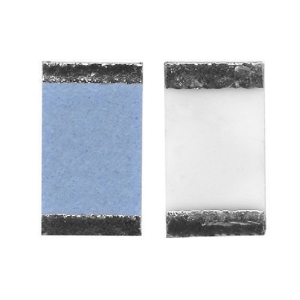

P0402 Image

The P0402 from Vishay is a Space Qualified Resistor with a resistance range of 10 Ohm to 1 MOhm. This chip resistor has a tolerance of +/- 0.01 to 5 % and a rated power of up to 0.063 W. It has a limiting element voltage of 50 V and a temperature coeff

Product Specifications

Product Details

  • Part Number
    P0402
  • Manufacturer
    Vishay
  • Description
    10 Ohm to 1 MOhm Space Qualified Thin Film Chip Resistor

General Parameters

  • Resistor Type
    Wrap Around Resistor
  • Space Standard
    ESCC-4001
  • Resistance
    10 Ohms to 1 Mohms
  • Power Rating
    0.04 to 0.063 W
  • Voltage
    50 V
  • Substrate Material
    Alumina
  • Technology
    Thin Film
  • Tolerance
    ±0.01 %, ±0.02 %, ±0.05 %, 0.1 %, ±0.25 %, ±0.5 %, ±1 %, ±2 %, ±5 %
  • Operating Temperature
    -55 to 155 Degree C
  • Temperature Coefficient of Resistance
    ±5 ppm/ Degree C, ±10 ppm/ Degree C, ±25 ppm/ Degree C, ±50 ppm/ Degree C, ±100 ppm/ Degree C
  • RoHS Complaint
    Yes
  • Dimension
    2.54 x 1.27 x 0.5 Inches
