1 Ohm-22 MOhm Thick Film Chip Resistor

SKU: RCWPM-5150-98

Space Qualified Resistor by Vishay
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Vishay.

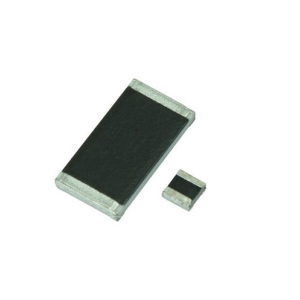

RCWPM-5150-98 Image

The RCWPM-5150-98 from Vishay is a Thick Film Chip Resistor with a resistance range of 1Ohm to 22 MOhm and has a tolerance of up to +/- 10 %. This resistance has a maximum working voltage of 125 V and a power rating of 0.15 W. It has a temperature coef

Product Specifications

Product Details

  • Part Number
    RCWPM-5150-98
  • Manufacturer
    Vishay
  • Description
    1 Ohm-22 MOhm Thick Film Chip Resistor

General Parameters

  • Resistor Type
    Chip Resistor
  • Space Standard
    ESCC-4001
  • Resistance
    1 to 22000000 Ohms
  • Power Rating
    0.15 W
  • Voltage
    125 V
  • Substrate Material
    Alumina
  • Technology
    Thick film
  • Tolerance
    ±0.5 %, ±1 %, ±2 %, 5 %, ±10 %
  • Operating Temperature
    -65 to 150 Degree C
  • Temperature Coefficient of Resistance
    ±100 ppm/ Degree C, ±200 ppm/ Degree C, ±300 ppm/ Degreee C
  • Package Type
    Chip
  • Application
    Military
  • Dimension
    0.155 x 0.05 x 0.02 Inches (L x W x T)
