Lightweight, High Performance Cable Assemblies for 29 GHz

SKU: SUCOFLEX 329

Space Qualified Cable Assembly by HUBER+SUHNER
3 more products
Download Datasheet Request Information

Note : Your request will be directed to HUBER+SUHNER.

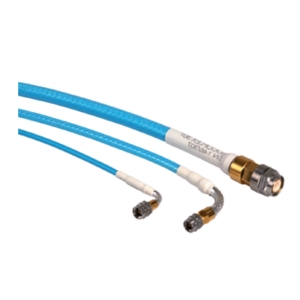

SUCOFLEX 329 Image

The SUCOFLEX 329 from HUBER+SUHNER is a Space Qualified Cable Assembly with Frequency 29 GHz, Temperature -65 to 150 Degree C, Velocity of Propagation 82%. Tags: Flexible. More details for SUCOFLEX 329 can be seen below.

Product Specifications

Product Details

  • Part Number
    SUCOFLEX 329
  • Manufacturer
    HUBER+SUHNER
  • Description
    Lightweight, High Performance Cable Assemblies for 29 GHz

General Parameters

  • Bend Radius
    23 mm (Static), 70 mm (Repeated)
  • Cable Diameter
    5.1 mm (Outer)
  • Center Conductor
    Solid Wire (Inner), Flat Wire Braid (Outer)
  • Impedance
    50 Ohms
  • RoHS
    Yes
  • Shielding Effectiveness
    90 dB
  • Type
    Flexible
  • Frequency
    29 GHz
  • Temperature
    -65 to 150 Degree C
  • Velocity of Propagation
    82%
  • Application
    Static
  • Note
    Weight : 40 g/m, Tensile load : 133 N, Jacket : ETFE, Radiation Gamma : 200 Mrad
