Space Qualified Coaxial Cable Assemblies

SKU: SpaceNXT 105Q

Space Qualified Cable Assembly by Smiths Interconnect
22 more products
Download Datasheet Request Information

Note : Your request will be directed to Smiths Interconnect.

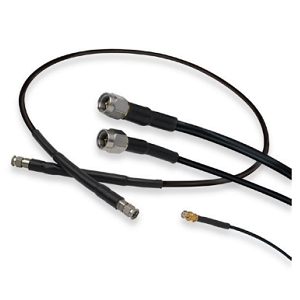

SpaceNXT 105Q Image

The SpaceNXT 105Q from Smiths Interconnect is a Space Qualified Cable Assembly with Length Custom Length Available, Attenuation 0.00099 to 0.576 dB/100 ft, Capacitance 30 pF/ft, Delay 1.45 ns/ft, Frequency DC to 40 GHz. Tags: Flexible. More details for SpaceNXT 105Q can be seen below.

Product Specifications

Product Details

  • Part Number
    SpaceNXT 105Q
  • Manufacturer
    Smiths Interconnect
  • Description
    Space Qualified Coaxial Cable Assemblies

General Parameters

  • Connector 1
    2.92 mm, SMA, SMP
  • Connector 1 Gender
    Plug, Jack
  • Bend Radius
    0.625 Inches
  • Connector 1 Geometry
    Straight
  • Connector 2
    2.92 mm, SMA, SMP
  • Connector 2 Gender
    Plug, Jack
  • Connector 2 Geometry
    Straight
  • Length
    Custom Length Available
  • Connector 1 Polarity
    Standard
  • Connector 2 Polarity
    Standard
  • Impedance
    50 Ohms
  • Shielding Effectiveness
    100 dB
  • Grade
    Space Qualified
  • Type
    Flexible
  • Attenuation
    0.00099 to 0.576 dB/100 ft
  • Capacitance
    30 pF/ft
  • Delay
    1.45 ns/ft
  • Frequency
    DC to 40 GHz
  • Power
    19 to 160 W
  • Temperature
    -55 to 150 Degree C
  • Velocity of Propagation
    70%
  • Application
    Satellite Communication & Navigation, Military, Commercial and Scientific Programs, GEO/MEO/LEO and Small Satellites, Manned Space Flight
  • Space Standard
    MIL-DTL-17H, Mil-STD-202
