28 GHz Space Flight Cable Assemblies

SKU: PT210-SP

Space Qualified Cable Assembly by Times Microwave Systems
8 more products
Download Datasheet Request Information

Note : Your request will be directed to Times Microwave Systems.

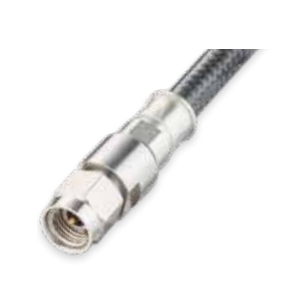

PT210-SP Image

The PT210-SP from Times Microwave Systems is a Space Qualified Cable Assembly with Length Custom Length Available, Capacitance 24.4 pF/ft, Delay 1.23 ns/ft, Frequency DC to 28 GHz, Temperature -150 to 150 Degree C. More details for PT210-SP can be seen below.

Product Specifications

Product Details

  • Part Number
    PT210-SP
  • Manufacturer
    Times Microwave Systems
  • Description
    28 GHz Space Flight Cable Assemblies

General Parameters

  • Connector 1
    SMA, TNC, 2.92 mm
  • Connector 1 Gender
    Plug, Jack
  • Bend Radius
    1.125 mm
  • Connector 1 Geometry
    Straight, Right Angle
  • Connector 2
    SMA, TNC, 2.92 mm
  • Connector 2 Gender
    Plug, Jack
  • Cable Diameter
    0.224 Inche
  • Center Conductor
    Beryllium Copper, ASTM B196 Gold Plate
  • Connector 2 Geometry
    Straight, Right Angle
  • Length
    Custom Length Available
  • Connector 1 Polarity
    Standard
  • Connector 2 Polarity
    Standard
  • Impedance
    50 Ohms
  • Shielding Effectiveness
    90 dB
  • Grade
    Space Qualified
  • Capacitance
    24.4 pF/ft
  • Delay
    1.23 ns/ft
  • Frequency
    DC to 28 GHz
  • Temperature
    -150 to 150 Degree C
  • Velocity of Propagation
    83%
  • Application
    Space
  • Space Standard
    MIL-DTL-45204
