Thin Film Band Pass SMD Filter from 3.6 to 4.2 GHz

SKU: BP0805A3900ASTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

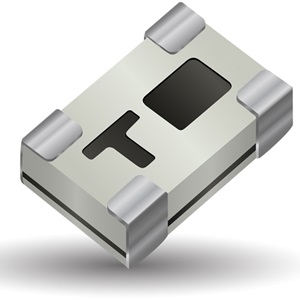

BP0805A3900ASTR Image

The BP0805A3900ASTR from Kyocera AVX is a Space Qualified RF Filter with Frequency 3.6 to 4.2 GHz, Center Frequency 3900 MHz, Bandwidth 600 MHz, Power 5 W, Insertion Loss -2.5 dB. Tags: Surface Mount. More details for BP0805A3900ASTR can be seen below.

Product Specifications

Product Details

  • Part Number
    BP0805A3900ASTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Band Pass SMD Filter from 3.6 to 4.2 GHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Thin Film
  • Frequency
    3.6 to 4.2 GHz
  • Center Frequency
    3900 MHz
  • Bandwidth
    600 MHz
  • Power
    5 W
  • Insertion Loss
    -2.5 dB
  • Return Loss
    -18 dB
  • Rejection
    -25 to -10 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 105 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    5G / 6G / UWB Applications, Base Stations, Mobile Communications, Satellite TV Receivers, GPS, Vehicle location systems, Wireless LAN’s
  • Dimension
    2.03 x 1.55 x 0.8 mm (L x W x T)
