Thin Film Band Pass SMD Filter from 2.7 to 2.9 GHz

SKU: BP1206A2800ASTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

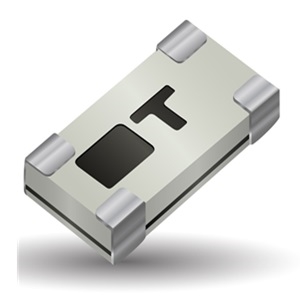

BP1206A2800ASTR Image

The BP1206A2800ASTR from Kyocera AVX is a Space Qualified RF Filter with Frequency 2.7 to 2.9 GHz, Center Frequency 2800 MHz, Bandwidth 200 MHz, Power 8 W, Insertion Loss -1.9 dB. Tags: Surface Mount. More details for BP1206A2800ASTR can be seen below.

Product Specifications

Product Details

  • Part Number
    BP1206A2800ASTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Band Pass SMD Filter from 2.7 to 2.9 GHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Thin Film
  • Frequency
    2.7 to 2.9 GHz
  • Center Frequency
    2800 MHz
  • Bandwidth
    200 MHz
  • Power
    8 W
  • Insertion Loss
    -1.9 dB
  • Return Loss
    -12 dB
  • Rejection
    -40 to -27 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 105 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    5G / 6G / UWB Applications, Base Stations, Mobile Communications, Satellite TV Receivers, GPS, Vehicle location systems, Wireless LAN’s
  • Dimension
    3.08 x 1.6 x 0.87 mm (L x W x T)
