Thin Film Band Pass LGA Filter from 3.7 to 5.5 GHz

SKU: BP1206A4600ANTR

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

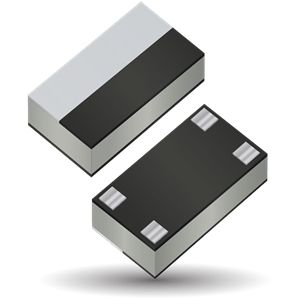

BP1206A4600ANTR Image

The BP1206A4600ANTR from Kyocera AVX is a Space Qualified RF Filter with Frequency 3.7 to 5.5 GHz, Center Frequency 4600 MHz, Bandwidth 1800 MHz, Power 8 W, Insertion Loss -1.1 dB. Tags: Surface Mount. More details for BP1206A4600ANTR can be seen below.

Product Specifications

Product Details

  • Part Number
    BP1206A4600ANTR
  • Manufacturer
    Kyocera AVX
  • Description
    Thin Film Band Pass LGA Filter from 3.7 to 5.5 GHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Thin Film
  • Frequency
    3.7 to 5.5 GHz
  • Center Frequency
    4600 MHz
  • Bandwidth
    1800 MHz
  • Power
    8 W
  • Insertion Loss
    -1.1 dB
  • Return Loss
    -15 dB
  • Rejection
    -35 to -30 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -40 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LGA Filter
  • Application
    Base Station, 5G / 6G LTE, Antenna Matching, Mobile Communications, Satellite TV Receivers, Vehicle Location Systems, Wireless LAN’s, Radar
  • Dimension
    3.10 x 1.60 x 0.6 mm (L x W x H)
