Multilayer Organic High Pass SMD filters from 4.14 to 8.5 GHz

SKU: HF0AA4140A7**

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

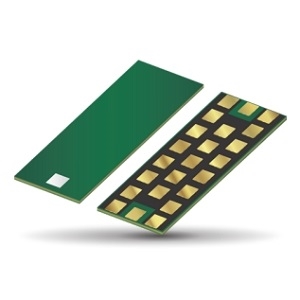

HF0AA4140A7** Image

The HF0AA4140A7** from Kyocera AVX is a Space Qualified RF Filter with Frequency 4.14 to 8.5 GHz, Center Frequency 6320 MHz, Cut Off Frequency 3.59 GHz, Bandwidth 4360 MHz, Power 2 W. Tags: Surface Mount. More details for HF0AA4140A7** can be seen below.

Product Specifications

Product Details

  • Part Number
    HF0AA4140A7**
  • Manufacturer
    Kyocera AVX
  • Description
    Multilayer Organic High Pass SMD filters from 4.14 to 8.5 GHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Paasive Filter
  • Frequency
    4.14 to 8.5 GHz
  • Center Frequency
    6320 MHz
  • Cut Off Frequency
    3.59 GHz
  • Bandwidth
    4360 MHz
  • Power
    2 W
  • Insertion Loss
    0.66 to 1.2 dB
  • Rejection
    30 to 40 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    Mobile Communication, GPS, Vehicle Location Systems, Wireless LANs, Satellite Receivers, Instrumentation
  • Dimension
    0.259 x 0.157 x 0.022 Inch (L x W x T)
