Multilayer Organic High Pass SMD filters from 8.007 to 19 GHz

SKU: HF12A8000A700

Space Qualified RF Filter by Kyocera AVX
268 more products
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

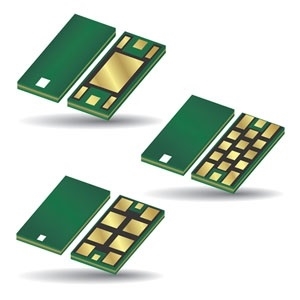

HF12A8000A700 Image

The HF12A8000A700 from Kyocera AVX is a Space Qualified RF Filter with Frequency 8.007 to 19 GHz, Center Frequency 13503.5 MHz, Cut Off Frequency 7.199 GHz, Bandwidth 10993 MHz, Insertion Loss 1 to 2 dB. Tags: Surface Mount. More details for HF12A8000A700 can be seen below.

Product Specifications

Product Details

  • Part Number
    HF12A8000A700
  • Manufacturer
    Kyocera AVX
  • Description
    Multilayer Organic High Pass SMD filters from 8.007 to 19 GHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Paasive Filter
  • Frequency
    8.007 to 19 GHz
  • Center Frequency
    13503.5 MHz
  • Cut Off Frequency
    7.199 GHz
  • Bandwidth
    10993 MHz
  • Insertion Loss
    1 to 2 dB
  • Rejection
    30 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 85 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SMD Filter
  • Application
    Satellite, Communications, Radar, Maritime Communications
  • Dimension
    0.181 x 0.121 x 0.028 Inch (L x W x T)
